60 Ton Rippa Large Excavator
Original price was: $75,000.00.$45,000.00Current price is: $45,000.00.
MORD PARAMETERS
| SMALL EXCAVATOR LP60-9L | |||
| Specification | Overall height of cab (mm) | 2580 | |
| Working weight of the whole machine (kg) | 5700 | Radius of tail gyration (mm) | 1650 |
| Bucket capacity range (m3) | 0.09-0.175 | Counterweight level (mm) | 700 |
| Boom length (mm) | 3000 | Track length (mm) | 2540 |
| Stick length (mm) | 1600 | Overall width of track (mm) | 1880 |
| performance | Track shoe width (mm) | 400 | |
| Rotation speed (rpm) | 9 | Overall length (mm) | 5850 |
| Walking speed (km/h) | 4.16/2.3 | Minimum ground clearance (mm) | 400 |
| Bucket digging force (KN) | 44 | Scope of work | |
| Stick digging force (KN) | 29 | Maximum digging range (mm) | 6150 |
| engine | Maximum digging range on the ground | 6150 | |
| engine model | Yanmar 4TNV94L | Maximum digging depth (mm) | 3890 |
| Rated power (kw/rpm) | 38.1/2200 | Maximum excavator height (mm) | 5780 |
| cooling method | Water cooling | Maximum discharge height (mm) | 4060 |
| Body size | Maximum vertical wall depth that can be
excavated (mm) |
3025 | |
| Full width of upper part (mm) | 2000 | ||
(In Stock)

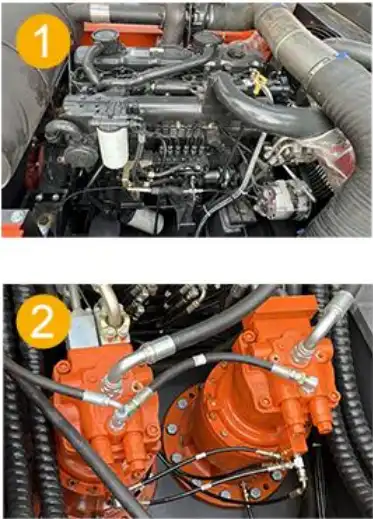

Engine: Japan Yanmar 4TNV94L
Rated power: 38.1kw/2200rpm
Control valve: Parker
The Rippa LP60-9L small excavator has stable performance and convenient operation. It adopts the original Japanese Yanmar engine to meet the domestic exhaust emission standards.
The Rippa LP60-9L small excavator has secure overall performance and handy operation. It adopts the unique Japanese Yanmar engine to meet the home exhaust emission standards. It is geared up with a new kind of cooling fan and a giant muffler, It is an environmentally pleasant engine that absolutely meets the European noise standards. While working, take into account the improvement of city environmental protection.
Flexible operability is the core of the job. The Rippa LP60-9L excavator makes use of the excellent Korean hydraulic system. The driver can evenly distribute the oil extent in accordance to the operation requirements, so that the strength arm, stick, and bucket can operate flexible, quickly and environment friendly operations. Achieved genuine freewheeling.
Application
The Rippa LP60-9L small excavator is appropriate for pipeline excavation, slope trimming, and small-scale building in agriculture and forestry industries. It can additionally exhibit superb working overall performance in small working areas or tough working environments.
